Needle Detectors
Conveyor Type Needle Detector Machine Different Models available for
Conveyor Type Needle Detector , Handy Type
Needle
Detector , Wide Belt Needle Detector , Double Head Needle Detector
for
Garmenting , Leather Goods , Home Furnishing , Shoe Industry , Food
Industry Ferrous & Non Ferrous Model Available , Kids Garments ,
Exports
Hoses , Jute Products , Non-Woven Products etc.
Wide range of Compliance Machine available with affordable door step
service & certificate available . Service from 17 Branches Pan
India.
KAIGU has been serving the Indian Market
from
last 30 Years in, Garment Export, Home Furnishing, Leather
Finishing
Industry, High Fashion, Shirt Manufacturing etc. and is
well-known
brand in the world of clothing machinery.
Its products include series of:-
Needle Detector Machines with all the latest compliance
requirement, with double head, wider width & many other
technically advanced patent features. Different models available
for Garment Export, Home Furnishing, Leather Finishing Industry,
High Fashion, Shirt Manufacturing etc.
Hence becoming unique and most successful Machine in The machines are
brilliant in technology, ergonomically designed, having advanced safety
features and very suitable for Indian working conditions. While the
technology is at par with the European and Japanese machines , yet
specific to Indian needs at affordable prices.

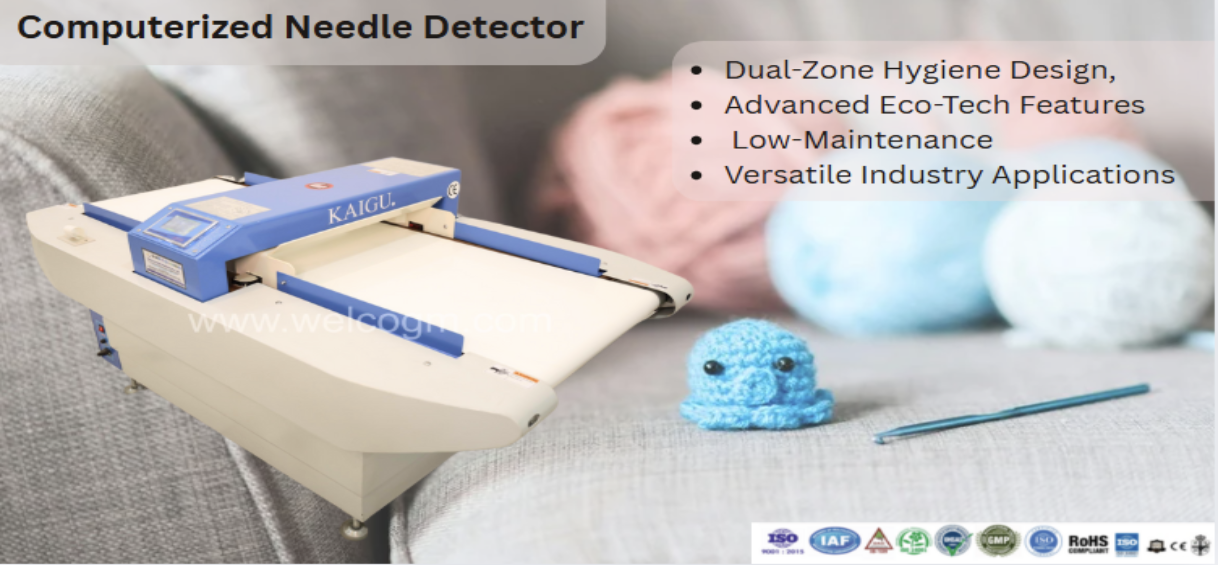

1. Single Head Type Needle Detector Machine
Machine Available from 0.6 mm to 6 mm 9 Level Callibration
| Touch Screen Model | |
| MODEL | LJZ-650 Directly connecting to printer/computer |
| Detecting Method | Magnetic induction |
| Detecting ability | Min 0.8mm |
| Detecting height | 100mm |
| Detecting width | 600 mm |
| Detecting adjustment | Step less |
| Alarm Method | Buzzer,Lamp |
| Model no | Width x Height | Sensitivity |
|---|---|---|
| LJZ-650/80 | 650 X 80 mm | Fe 0.6mm |
| LJZ-650/100 | 650 x 100mm | Fe 0.8mm |
| LJZ-650/120 | 650 x 120mm | Fe 1.0mm |
| LJZ-650/170 | 650 x 170mm | Fe 1.2mm |
| LJZ-650/220 | 650 x 220mm | Fe 1.5mm |
| LJZ-650/270 | 650 x 250mm | Fe 2.mm |
| LJZ-650/320 | 650 x 320mm | Fe 2.5mm |
| MODEL | LJZ-620 |
| Detecting Method | Magnetic induction |
| Detecting ability | Min 0.8mm |
| Detecting height | 100mm |
| Detecting width | 600 mm |
| Detecting adjustment | Step less |
| Alarm Method | Buzzer,Lamp |
| Belt speed | 30mm/min. |
| Model no | Width x Height | Sensitivity |
|---|---|---|
| LJZ-620/80 | 620 X 80 mm | Fe 0.6mm |
| LJZ-620/100 | 620 x 100mm | Fe 0.8mm |
| LJZ-620/120 | 620 x 120mm | Fe 1.0mm |
| LJZ-620/170 | 620 x 170mm | Fe 1.2mm |
| LJZ-650/220 | 620 x 220mm | Fe 1.5mm |
| LJZ-650/270 | 620 x 250mm | Fe 2.mm |
| LJZ-650/320 | 620 x 300mm | Fe 2.5mm |
Features
- Environment test and belt test for complete assurance that nothing is disturbing the magnetic field and machine is ready to operate.
- Cycled magnetic sensor excellent anti-disturb performance.
- Accurate metal and needle chip and locating technology, customer defines function easy to use.
- Learn function that only needle is detected and not scattered metal dust that is present in many garments pr materials like denim,jute,,gums etc.
- Individual sensibility adjusting for every channel fit for detecting garments that have studs or zippers etc.
- Smart report system, provide different kind of report regarding number of piece passed number of piece rejected to total production time taken etc .It ensure that a rejected piece is not included in the even by mistake.
- The control system is based on PS-485 best technology.
- Installed machine status indicator and operator guider which are based on matrix LCD touch screen technology.
- Environment test and belt test for complete assurance that nothing is disturbing the magnetic field and machine is ready to operate.
- Monitor of detecting sensitivity helps to adjust sensitivity.
- 10 pcs of indicator lamps identify exact location of object so that you can find it easily.
- Detecting sensitivity can we adjust staples.
Video Link :
Shoe- Needle Detector
Watch Video
Needle Detector For Leather
Watch Video
Needle Detector for Garment Exporters
Watch Video
2. Double Head Needle detectors
for Garmenting , Leather Goods , Home Furnishing , Shoe Industry , Food Industry Ferrous & Non Ferrous Model Available , Kids Garments , Exports Hoses , Jute Products , Non-Woven Products etc.
Features
- Environment test and belt test for complete assurance that nothing is disturbing the magnetic field and machine is ready to operate.
- Cycled magnetic sensor excellent anti-disturb performance.
- Accurate metal and needle chip and locating technology, customer defines function easy to use.
- Learn function that only needle is detected and not scattered metal dust that is present in many garments pr materials like denim,jute,,gums etc.
- Individual sensibility adjusting for every channel fit for detecting garments that have studs or zippers etc.
- Smart report system, provide different kind of report regarding number of piece passed number of piece rejected to total production time taken etc .It ensure that a rejected piece is not included in the even by mistake.
- The control system is based on PS-485 best technology.
- Installed machine status indicator and operator guider which are based on matrix LCD touch screen technology.
- Environment test and belt test for complete assurance that nothing is disturbing the magnetic field and machine is ready to operate.
- Monitor of detecting sensitivity helps to adjust sensitivity.
- 10 pcs of indicator lamps identify exact location of object so that you can find it easily.
- Detecting sensitivity can we adjust staples.
3. Wide Needle Detector Machine
For Garmenting , Leather Goods , Home Furnishing , Shoe Industry , Food Industry Ferrous & Non Ferrous Model Available , Kids Garments , Exports Hoses , Jute Products , Non-Woven Products etc.
Features
- When sensor detect a broken needle chip which diameter is over the ability, the machine buzzers conveyor b stops and returns the product detected
- Monitor of detecting sensitivity helps to adjust sensitivity
- 10 pcs. Of indicator lamps identify exact location of object that you can find it easily
- Detecting sensitivity can be adjusted .
- Whenever the needle is detected the machine will stop until the Manager comes and unlock the system with the provided key.
4. Metal Detector(Ferrous and Non Ferrous)
Widely used In home furnishing,
Garments industries,leather industries,
cosmetic tissue, food industries,
rubber, plastic, Chemic...
| Model | Detection Theory | Detection Adjustment | Conveyor Speed | Sensitivity Adjustment | Rejection System | Operations Wey | Alarm | Power | Rated Output |
|---|---|---|---|---|---|---|---|---|---|
| 600-Series | Balances Coil | Auto and manual | 25m/min, adjustable optional | Manual | Air biast Swing arm,armpusher(option) | Touch Screen | Buzzer | Ac110/220v,50-60HZ | Appr.300w. |
| Model No. | WidthxHeight | Sensitivity |
|---|---|---|
| LJZ-600/100 | 600 x 100mm | Fe.0.6mm sus1.0mm |
| LJZ-600/120 | 600 x 120mm | Fe.0.8mm sus1.2mm |
| LJZ-600/150 | 600 x 150mm | Fe.1.0mm sus1.5mm |
| LJZ-600/200 | 600 x 200mm | Fe.1.2mm sus 2.0mm |
| Model No. | WidthxHeight | Sensitivity |
|---|---|---|
| LJZ-400/100 | 400 x 100mm | Fe.0.5mm sus 1.0mm |
| LJZ-400/120 | 400 x 120mm | Fe.0.6mm sus 1.2mm |
| LJZ-400/150 | 400 x 150mm | Fe.0.8mm sus 1.5mm |
| LJZ-400/200 | 400 x 200mm | Fe.1.0mm sus 2.0mm |
Features
- Multi-Frequency & Duel System Detection.
- Very High resolution for phase –Angle adjustment.
- Automatic product effect & sensitive study.
- Based on high speed 32bit CPU control unit.
- LCD with screen ,Easy to operation.
- Friendly Operation system with multi-operator setup
- 100 Product Memory.
- Detection & Login Records.
- Standard Equipped USB Port for data export.
- Ethernet connection capability.
- Tools free conveyor belt disassemble.
- Small size conveyor design.
- Ip65 optional.
5. Handy Type Needle Detector
Handy Type Needle detector, with best kind of detection Magnet for precise type of metal. With High & Low mode detection mode
Features
- This innovative and convenient type needle detector can detect 0.8 mm steel needles.
- Battery-saving mode
- Battery mode is automatically converted to saving mode while the device is in standby mode, reducing battery usage. When you lift it by hand, the machine begins automatically. The newly developed detecting circuit has a low power consumption.
- Light in weight
- The weight is light and agronomically beneficial. The newly constructed body allows you to grasp for an extended period of time.
| Model | SJZ-1 |
|---|---|
| Detection Method | Magnetic Induction |
| Detecting Area | 25mm (W)X 50 mm(D) |
| Alarm Method | Electric buzzer, large indicator Lamp |
| Power Source | 1.5 Dry Cell battery 2AAA |
| Battery Life | 200H (Apporx.) |
