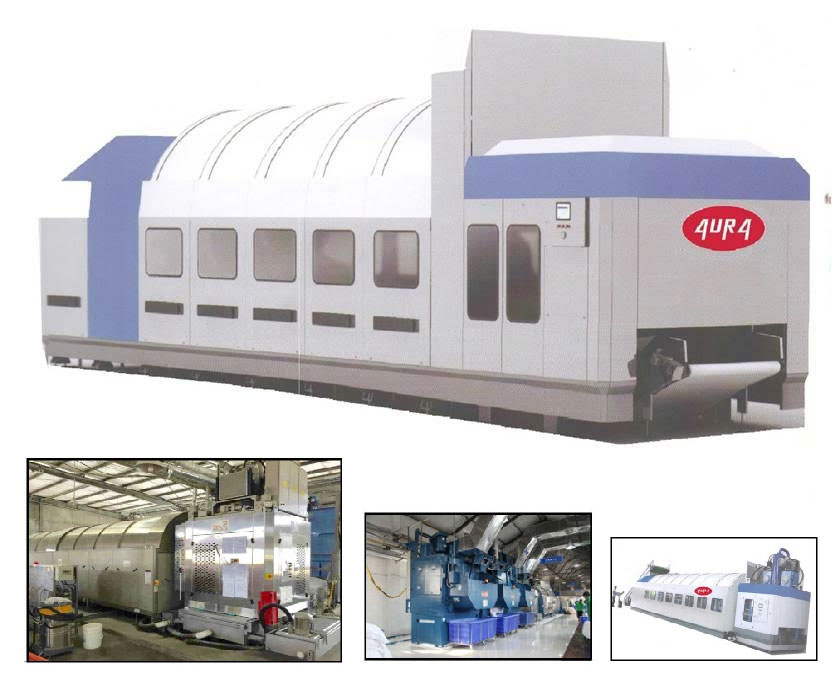

1. FULLY AUTOMATIC TUNNEL TYPE LAUNDRY MACHINE
- Pre-wash high-pressure pump cycle erosion
- Independent module speed adjustable frequency (7-15 rpm)
- Both the circumference and shaking-two washing methods
- 43:1 large load ratio, 0.3G ultra-high cleaning capacity
- Complete stainless steel closed structure to reduce noise and dust pollution. Watch window for easy routine monitoring loose-sheet folding door for quick repair and maintenance.
- Isolated gates to reduce cross and environmental pollution.
- Independent variable frequency drive, to adapt to different grass, easy to adjust internal hidden piping system.
- The structure is more compact, more convenient maintenance all structural parts are stainless steel
- High-speed water erosion, improve pre-wash effect increase the tank volume of 38% to ensure adequate washing process.
- Original design of the washing function, taking into account the two washing methods, to adapt to different textile washing process requirements, 360 degree round washing method, 270 degree shaking method
2. FULLY AUTOMATIC CLOTH FEEDING MACHINE
- Precision in Spread and Feed
The Clamps are designed as such that the tension of all types of linen is adjusted and to precisely spread and position it into the feed.
The feeding speed adjustment uses frequency inverter control to adopt the ironing pricesses of different lines.
With vacuum custion it enables to reduce audible noise and create a peaceful working ambiance.
- High Efficiency
3 feeding stations allow maximum width of 3.3 m linen to be spread and smoothed. Damaged lines which are feeded into the machine can be controlled by the operator through large rejection button at the feeding station.
The feeders offers a large colored touch screen with twenty automatic program that carries out statistical counts of feeding quantities.
The Machine also has an automatic lint cleaning function to ensure that the air exhaust duct in unblocked.
3. FULLY AUTOMATIC STACKER MACHINE
- 5 FOLDS MEET Common Need
Standard 2 primary folds and 3 cross folds meet most laundry needs.
- TOUCH SCREEN PLC Control
Easy access 8 Programs for 1 lane folding, and 4 prog. For 4 lane folding (for 3.3 model)
- QUALITY COMPONENTS ASSURES RELIABILITY
Heavy duty bearings supports all the rolers assures long lifepan of the machine.
- DROP STACKER FOR EASY BUNDLE
Come standard with drop stacker that stacks upto.
- Precise Photoelectric cell sensors and measuring wheels provide accurate measurements to PLC for perfect fold.
- The neatly counted and stacked bundles will be pushed up automatically to a slope for easy collection.
